Products

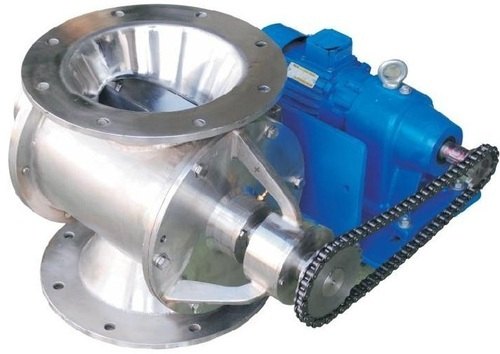

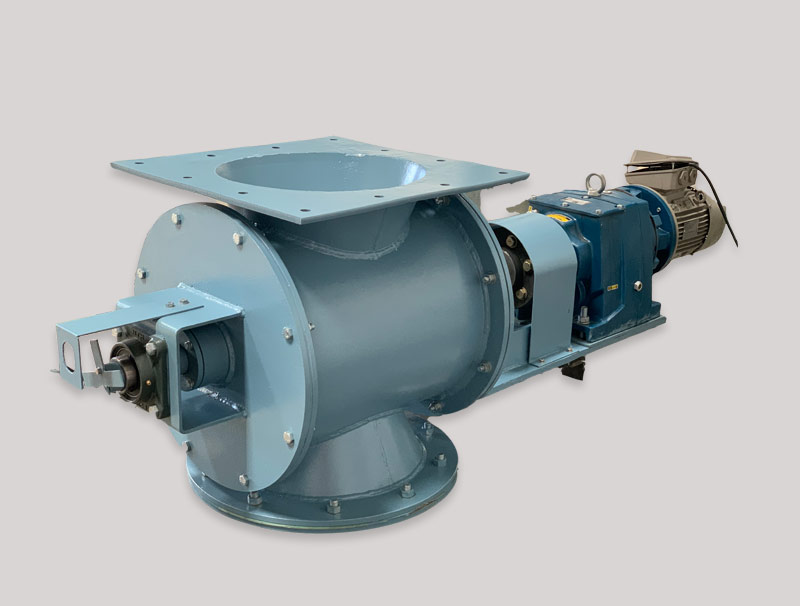

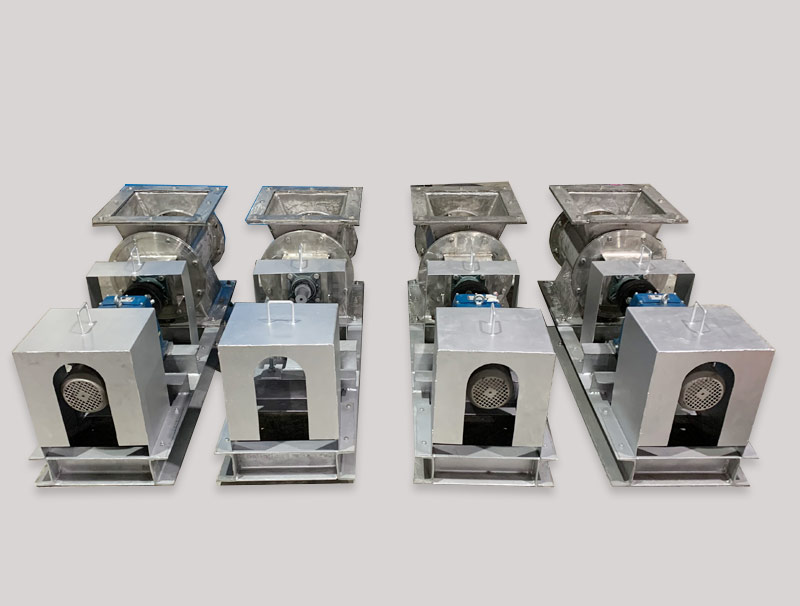

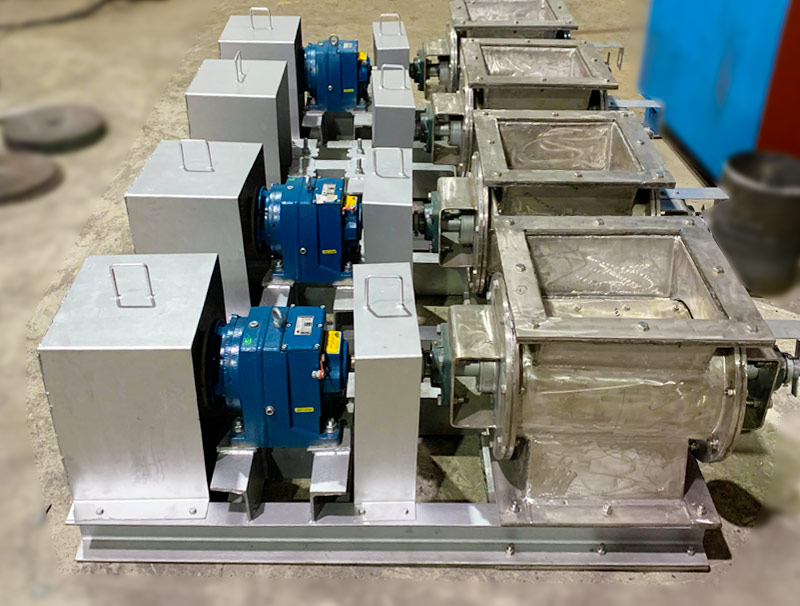

Rotary Air Lock Valve (RAV’s)
The main function of an RAV is to regulate (handle and control) the flow of granular materials.
The input material is fed from the hopper, from where it goes into the rotor, which then deposits the material into discreet packages or on a conveyer with minimum pressure loss.
Major Industries Used – Construction, Cement, Food.
contact us
- Shell and tube type
- Double tube type
- Condenser type
- Plate type
Heat Exchanger
Heat exchangers are machines used to transfer heat from one medium to another (liquid to liquid/liquid to gas and vice-a-versa). They are very common machines present in almost every industry. In heat exchangers, both the media(s) are generally rapid flowing in order to make the system more efficient. Generally, both the mediums are separated by a thin layer of wall. It can be used for heating as well as cooling. It’s an easy to use system where there is not much supervision needed. It is widely categorized depending on many factors as mentioned below.

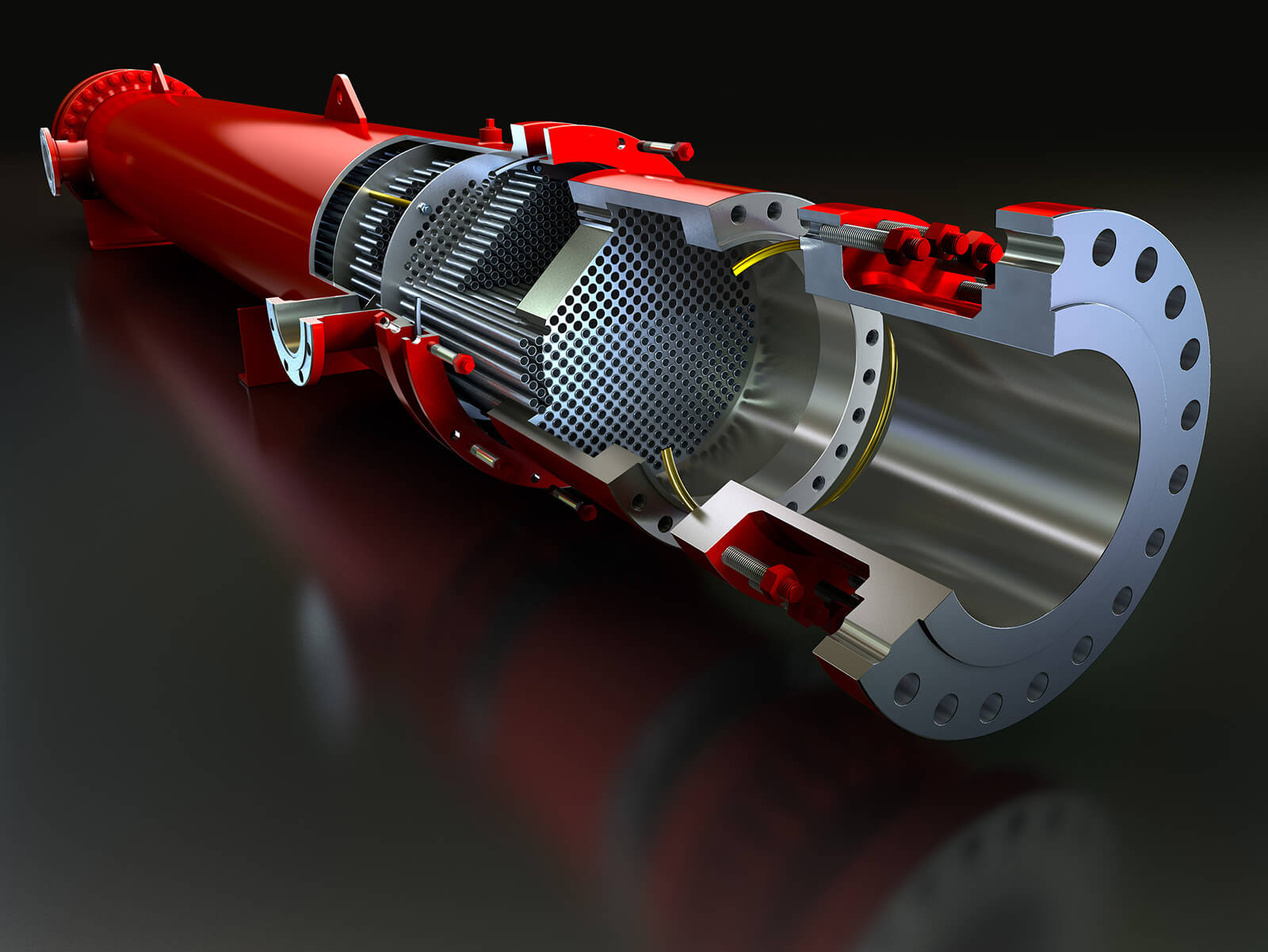

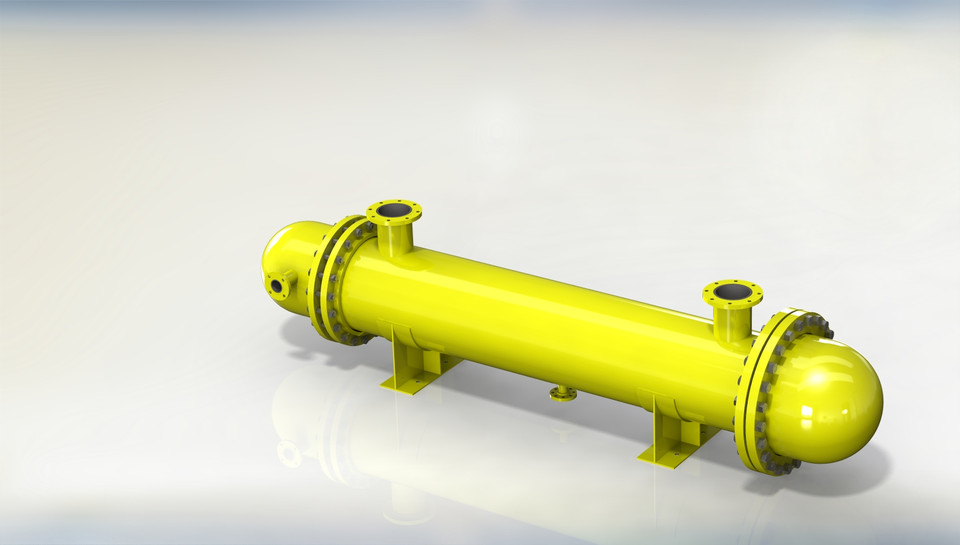

Contact usShell and tube type
This is a basic type of heat exchanger which consist of two running fluids.
First liquid flows through the inner tube and the second fluid runs through the shell to exchange heat.

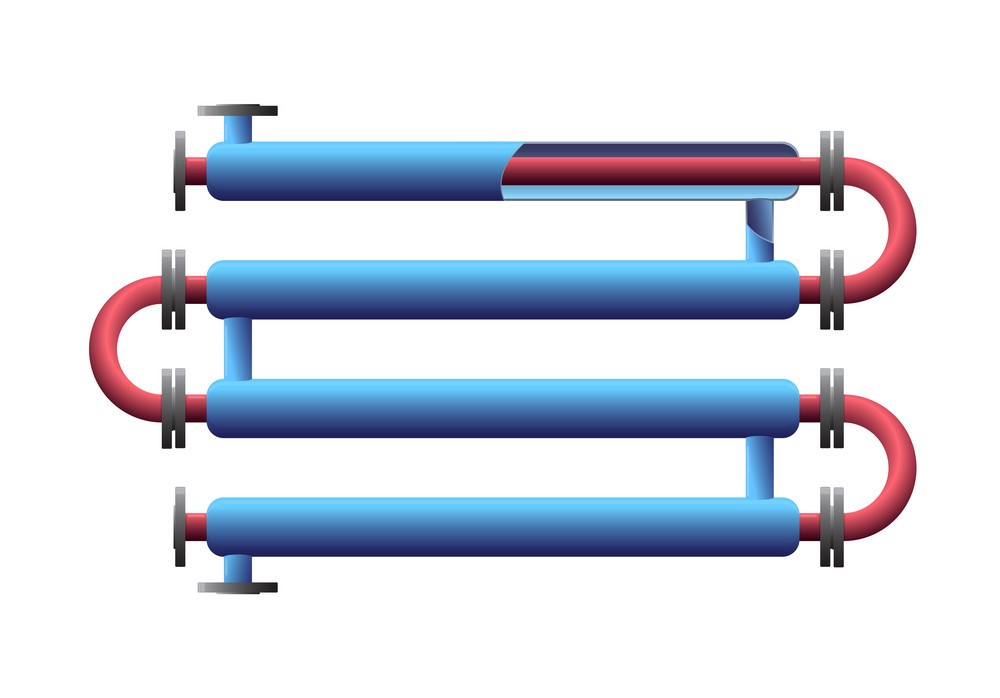

Double tube type
In this type of heat exchangers, there is a pipe concentrically placed in another pipe (co-current / counter-current).
It could be one or many pipes (less than 30) inside the larger pipe Counter - current type flow is comparatively more efficient.

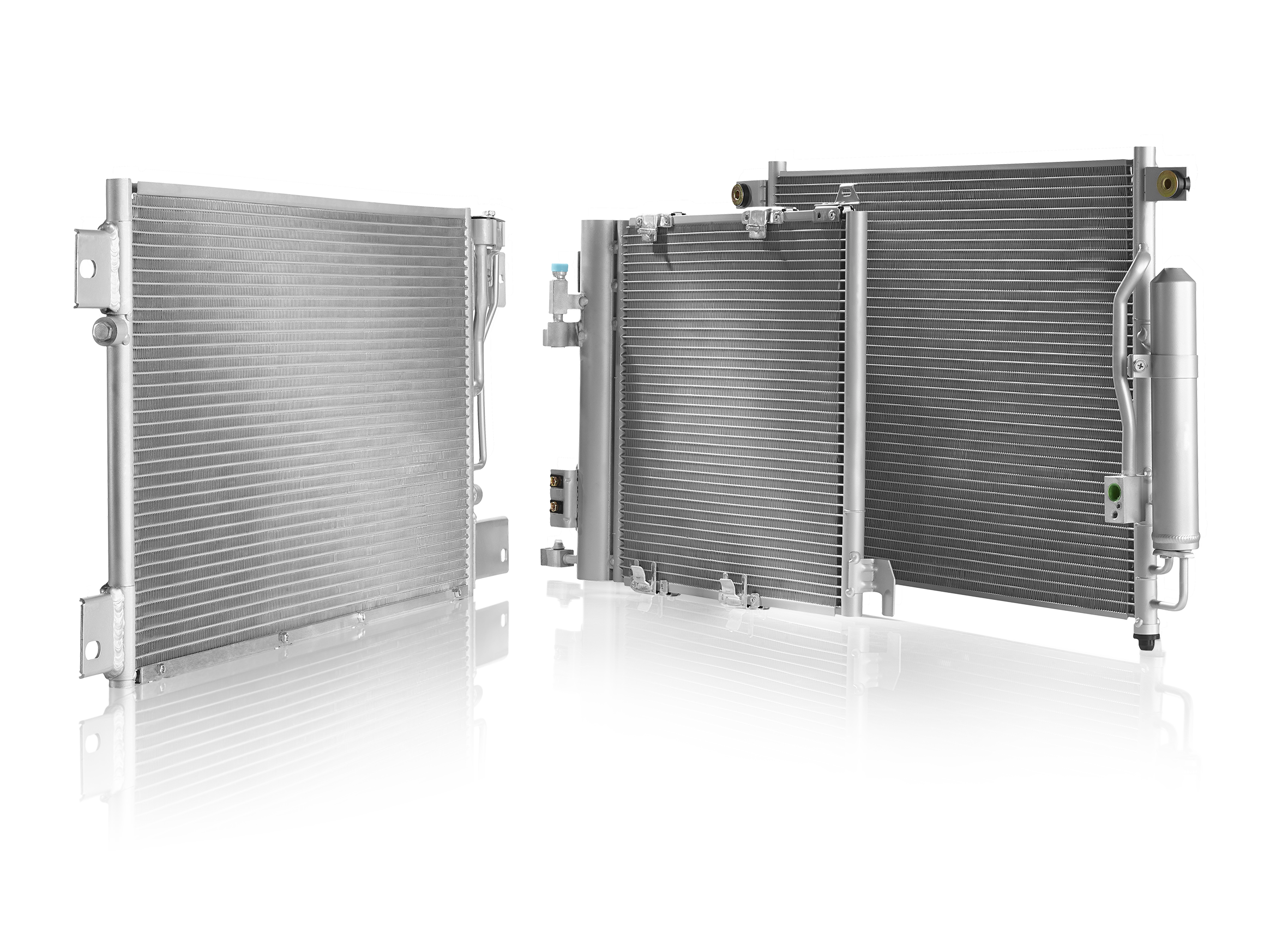

Condenser type
This heat exchanger is used to condense a gas into a liquid through cooling. The gas condenses on the wall off the tubes as a thin granular film, which subsequently drains down to the bottom.
The latent heat released by the gas is transferred to the surrounding.
First liquid flows through the inner tube and the second fluid runs through the shell to exchange heat.

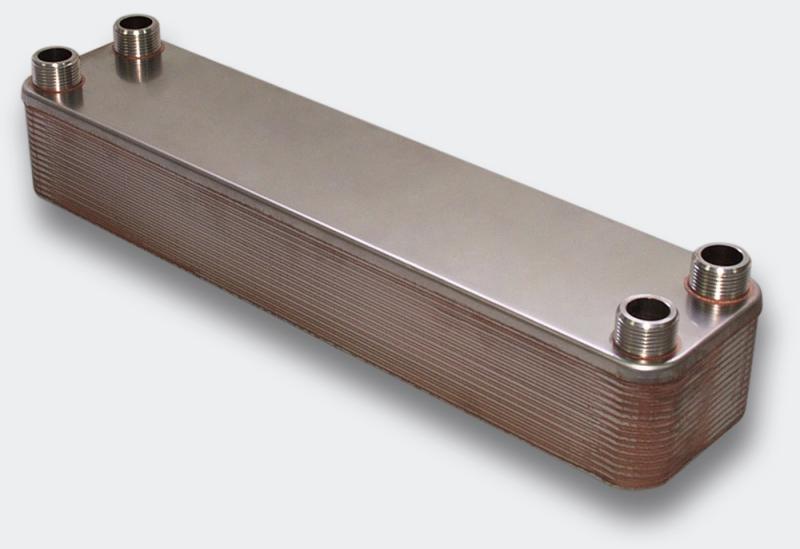

Plate Type Heat Exchanger
A plate type heat exchanger contains a series of parallel plates arranged such that fluid flows between them. There is a subsequent gap between two adjacent plates where the fluids flow.

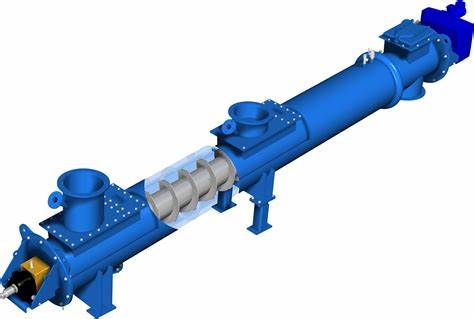

Screw Conveyers
This is the oldest type of conveyor.
It’s been used from hundreds of years.
New technologies have improved its quality/efficiency over time.
It’s mostly used for conveying granular or semi-solid materials like cereals, fertilizers, cement or hazardous materials.
It consists of a series of helical screw that are mounted on a shaft. It’s pitch, diameter and rpm are decided based on the type and nature of the material being handled.
They are further classified as follows:
a) Horizontal screw conveyers
b) Inclined screw conveyers
c) Vertical screw conveyers.

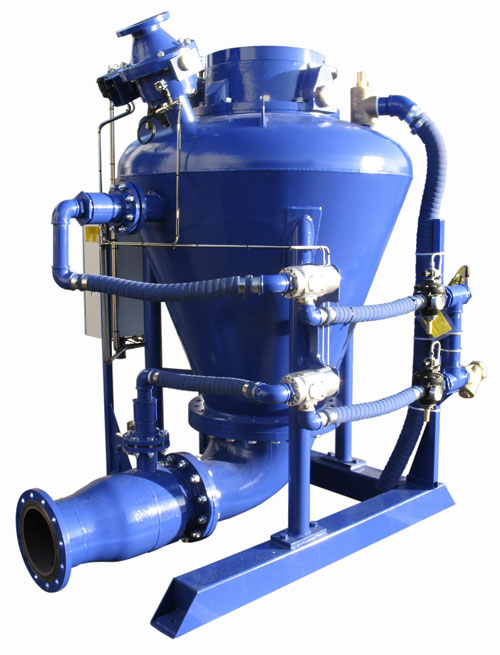

Pneumatic Conveyers
These conveyers transfer bulk, dry materials from one location to another.
The medium of transfer is pressurized gas (mostly air) through a pipeline.

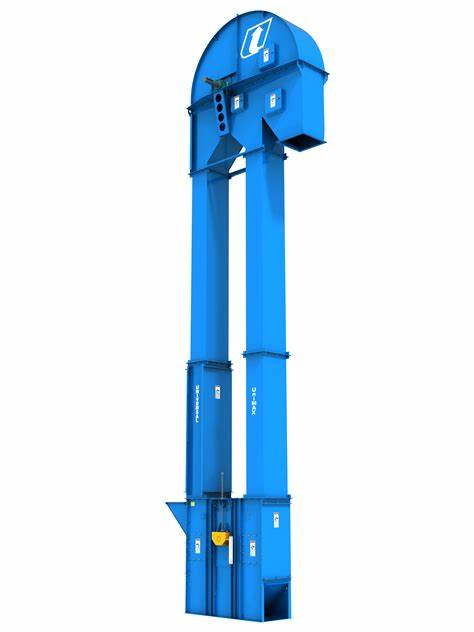

Bucket Elevators
Custom buckets are installed in series on a belt/chain drive. While working, the material is loaded at the bottom which travels upwards and then is unloaded at the top.
This works continuously in a closed circuit manner and elevates the materials.

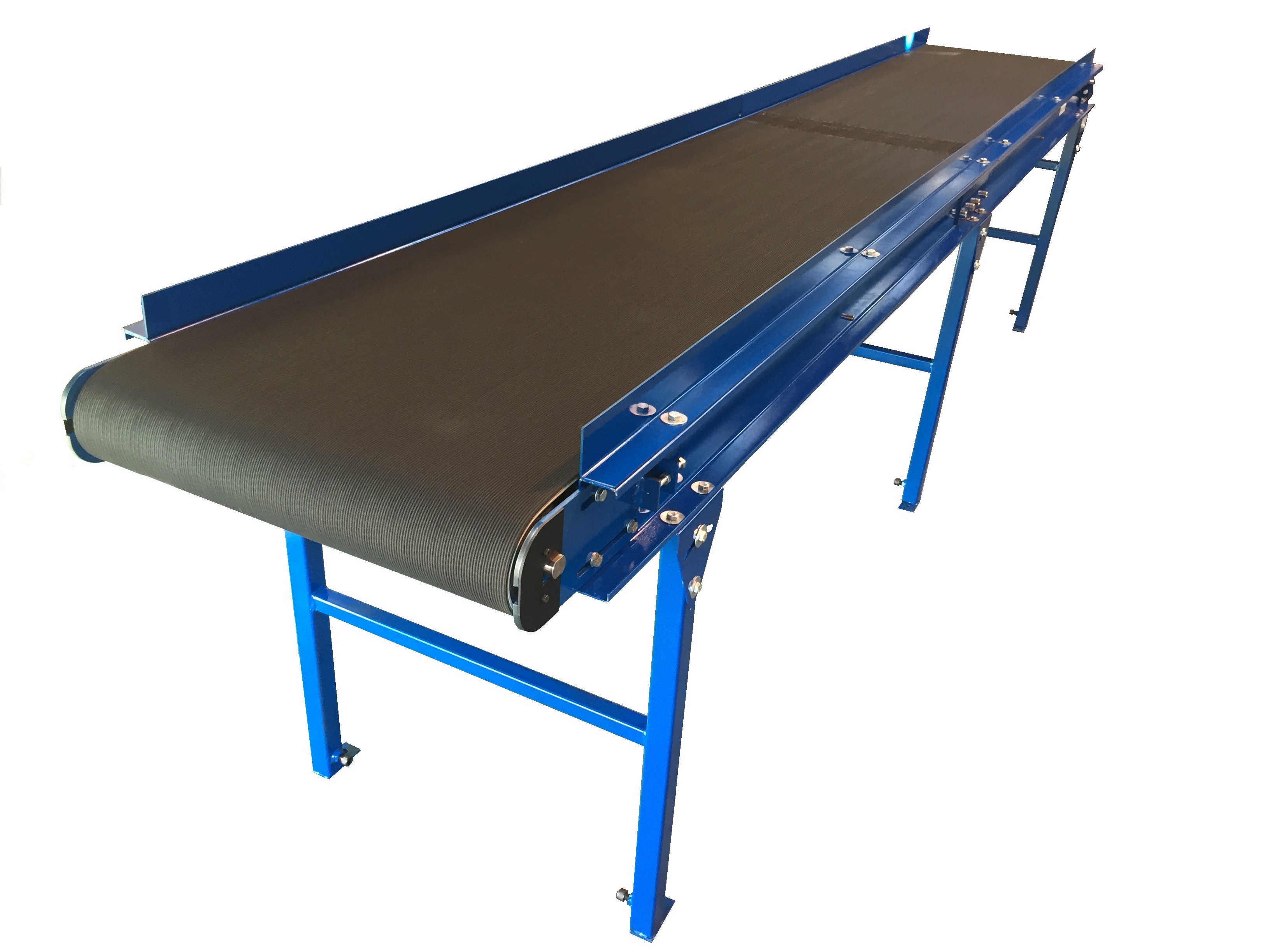

Belt Conveyers
These are the most common, versatile and simplest kind of conveyers.
It consists of an elevated platform with multiple pulleys strapped on with a belt. It revolves continuously in an endless loop.
Vessel
Storage vessels are of varied types based on shapes and functions which vary from low/high performance vessels to process/storage vessels depending on the type of fluid inside it (boiling/non-boiling/hazardous etc.,)
Depending on various factors, its shell thickness and number of layers is decided.
Then finally its testing is done (Hydro testing or other tests based on customer requirement(s)).
Contact us

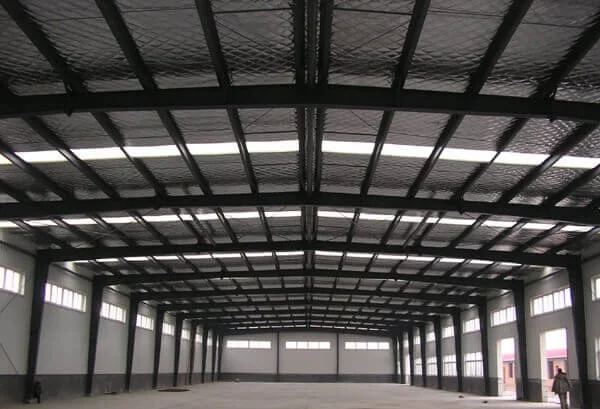

Structures
We can build all kinds of structures like Parking Shade, Warehouse Structures, Equipment Mounting Frames, Staircases etc. based on customer provided drawings.
